Metric Coilover Spring ID 65MM (2.56'')

VARIOUS RATES FOR YOUR PREFERENCE.

Since the metric system is used widely in the sport compact and road race market, we have introduced the metric line of coilover springs to reduce confusion and to better cater to our customer's needs.

Our metric coilover springs come in various sizes with inner diameters ranging from 60mm (2.25in) to 70mm (2.75in), spring lengths from 102mm (4in) to 254mm (10in), and spring rates from 3kg (168lbs) all the way up to 50kg (2800lbs). Whether you are looking for a comfortable ride for your commuter or a more aggressive setup for your race car, we have the right spring for YOUR application!

Swift Metric Coilover Springs 4"-10"Length 65mm

1 6

Swift Springs

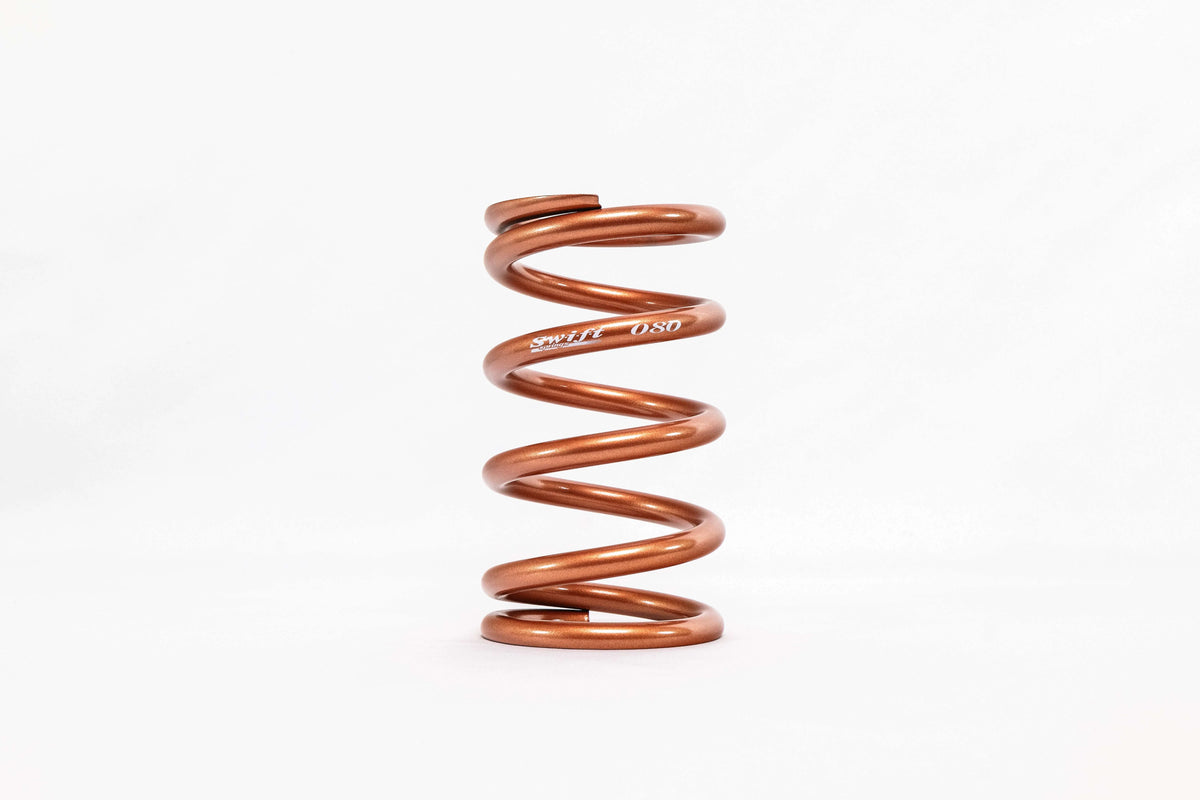

Metric Coilover Spring ID 65MM (2.56'') 4'' Length - Swift Springs usa. Price Reflects 2 springs must be bought in pairs. Per Swift

Part Number	Spring Rate (kg/mm)	Spring Rate (lb/in)	Usable Stroke (mm)	Usable Stroke (in)	Max Stroke (mm)	Max Stroke (in)
Z65-102-180	18.0	1008	52	2.0	56	2.2
Z65-102-200	20.0	1120	50	2.0	55	2.2
Z65-102-220	22.0	1232	48	1.9	55	2.2
Z65-102-240	24.0	1344	48	1.9	53	2.1
Z65-102-260	26.0	1456	47	1.9	52	2.0
Z65-102-280	28.0	1568	45	1.8	52	2.0
Z65-102-300	30.0	1680	45	1.8	50	2.0
Z65-102-320	32.0	1792	44	1.7	50	2.0
Z65-102-340	34.0	1904	43	1.7	49	1.9
Z65-102-380	38.0	2128	40	1.6	47	1.9
Z65-102-420	42.0	2352	38	1.5	44	1.7
Z65-102-460	46.0	2576	38	1.5	44	1.7
Z65-102-500	50.0	2800	36	1.4	43	1.7
